Convert CAD & BIM (Revit, IFC, AutoCAD) in dataBase (DataFrame)

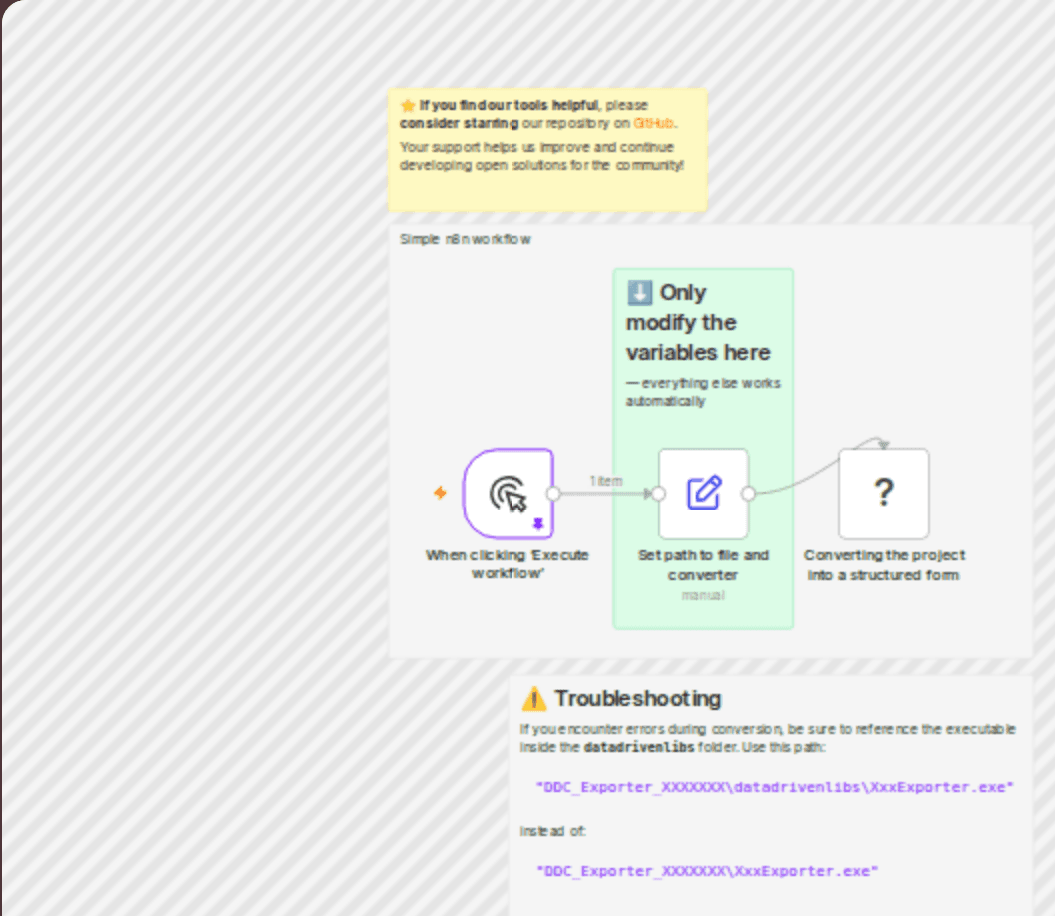

A minimal workflow to convert a Revit/IFC/DWG project into analysis-ready XLSX (and optional DAE) with a single run. Set two variables, execute, and the converter does the rest. What it does - Inputs: pathtoconverter and pathprojectfile (RVT/IFC/DWG). - Runs: RvtExporter.exe "<converter>" "<projectfile>". - Outputs: writes <ProjectName>rvt.xlsx (and rvt.dae if enabled by your converter). Prerequisites - Windows host (local executable + filesystem). - DDC Revit toolkit installed: C:\\DDCConverterRevit\\datadrivenlibs\\RvtExporter.exe. - A local project file you can read. How to use 1. Import this JSON into n8n. 2. Open “Set path to file and converter” and set: - pathtoconverter: C:\\DDCConverterRevit\\datadrivenlibs\\RvtExporter.exe - pathprojectfile: e.g., C:\\SampleProjects\\yourproject.rvt 3. Run Manual Trigger → the command node executes the converter. Notes & tips - Ensure the path points to the executable inside datadrivenlibs. - Use ASCII-safe paths; ensure write permissions next to the project file. - This is intentionally simple: chain it with your own Parse/Transform/Load steps as needed. Categories Data Extraction · Files & Storage · ETL · CAD/BIM Tags cad-bim, revit, ifc, dwg, converter, xlsx, dae Author DataDrivenConstruction.io info@datadrivenconstruction.io Consulting and Training We work with leading construction, engineering, consulting agencies and technology firms around the world to help them implement open data principles, automate CAD/BIM processing and build robust ETL pipelines. If you would like to test this solution with your own data, or are interested in adapting the workflow to real project tasks, feel free to contact us. Docs & Issues: Full Readme on GitHub
